J45 LED

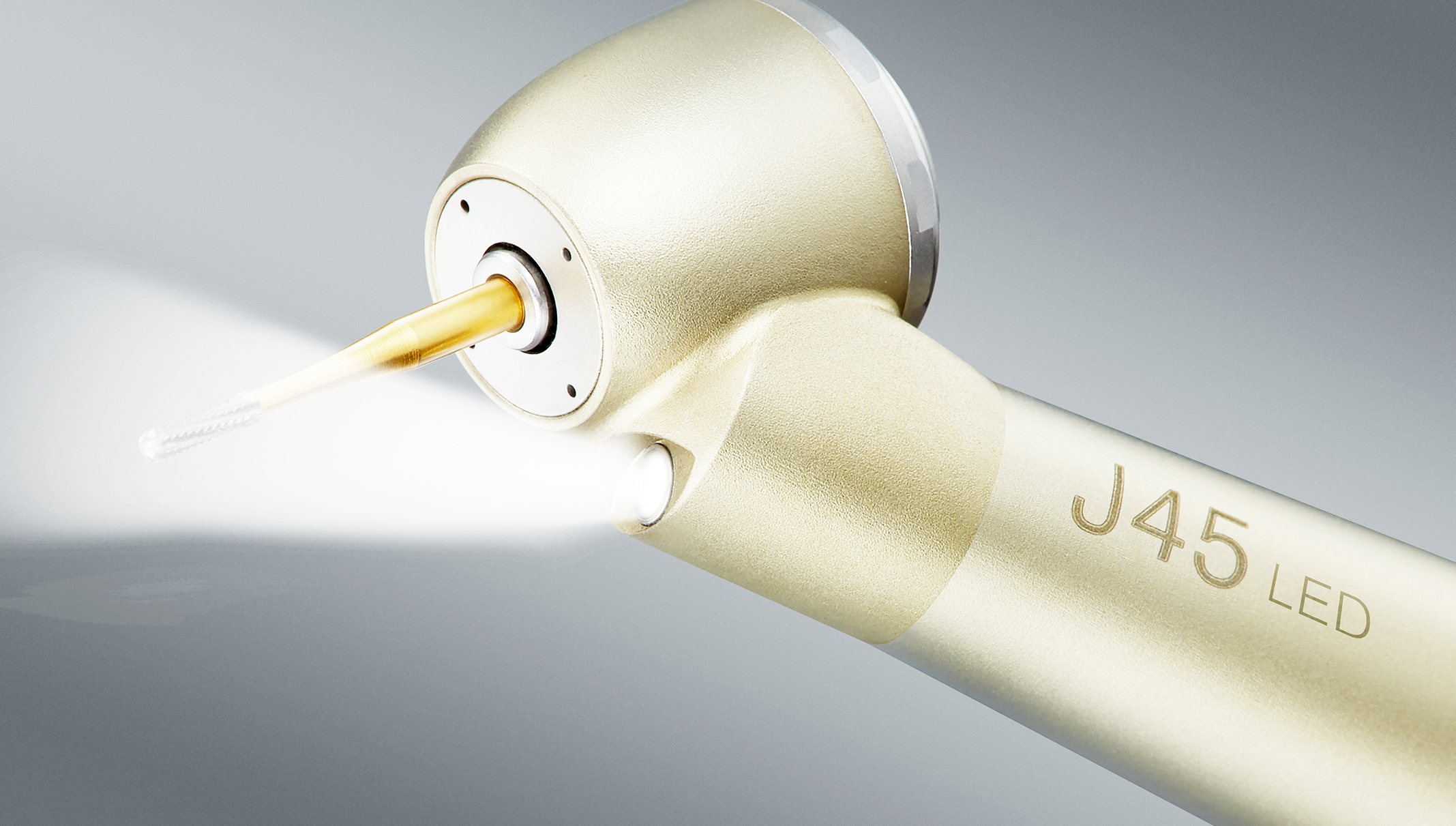

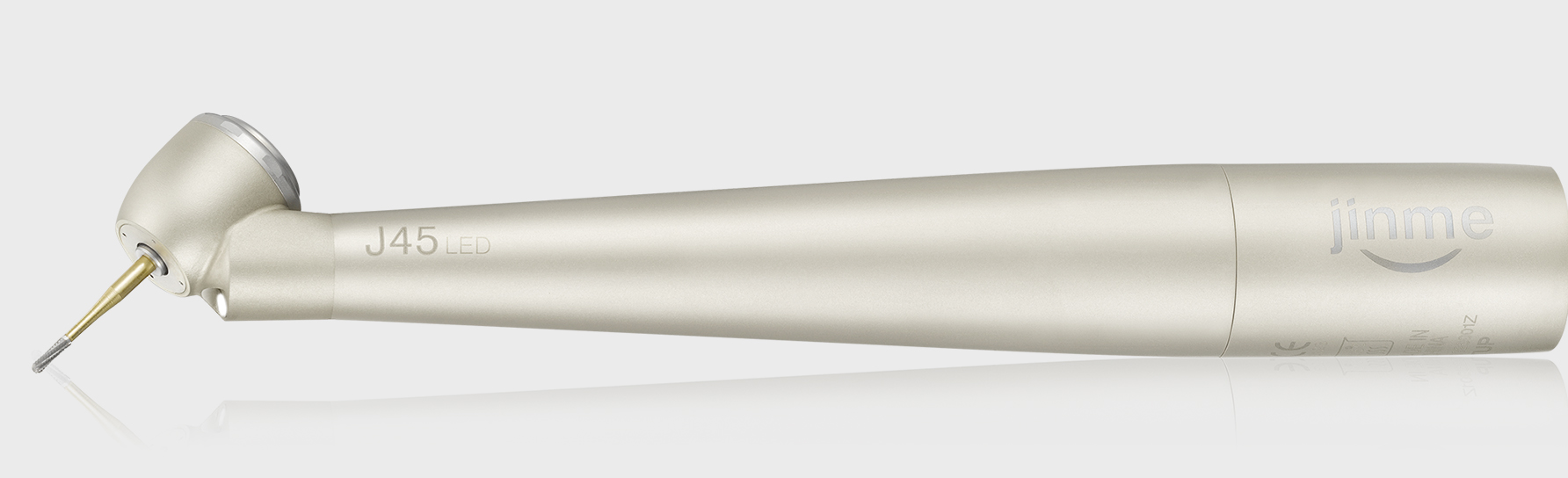

J45 (LED) minimally invasive dental handpiece with light source

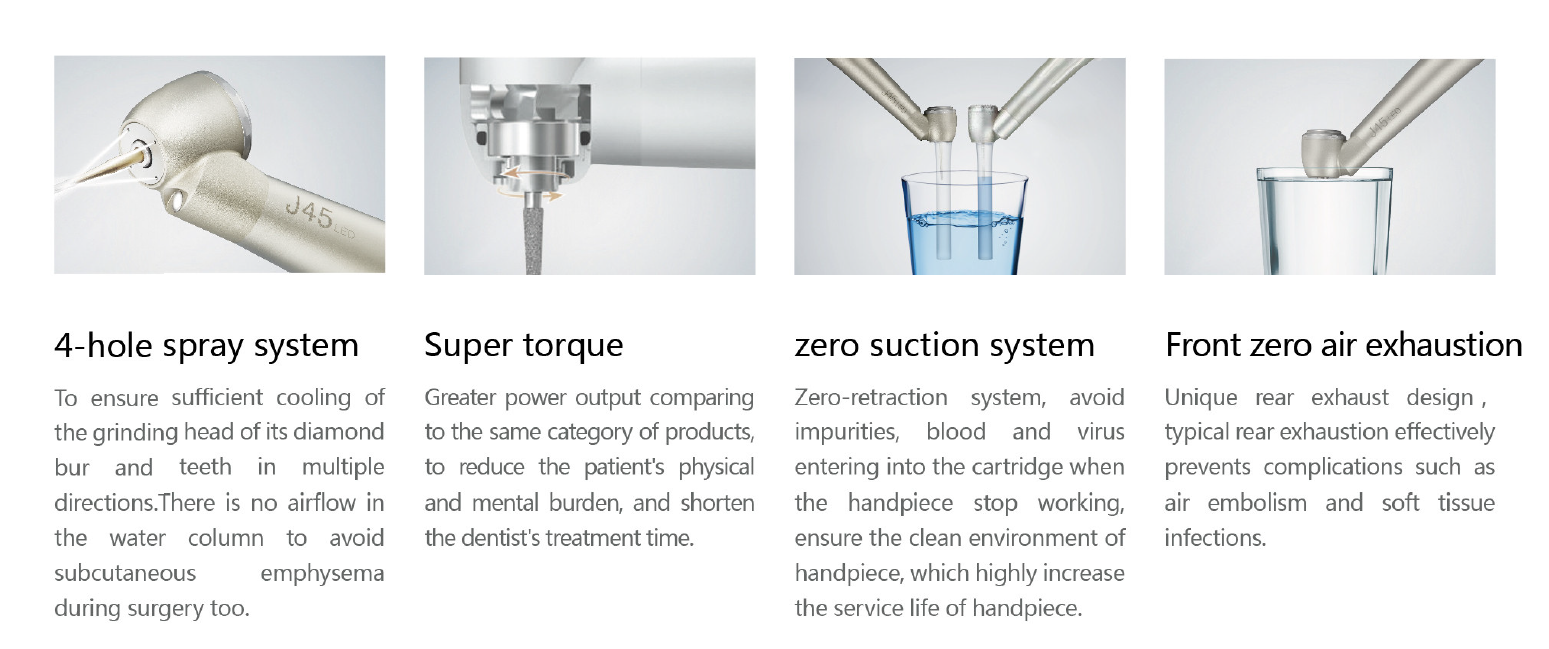

 To ensure sufficient cooling of the grinding head of its diamond bur and teeth in multiple directions.There is no airflow in the water column to avoid subcutaneous emphysema during surgery too.

 Greater power output comparing to the same category of products, to reduce the patient's physical and mental burden, and shorten the dentist's treatment time.

 Zero-retraction system, avoid impurities, blood and virus entering into the cartridge when the handpiece stop working, ensure the clean environment of handpiece, which highly increase the service life of handpiece.

 Unique rear exhaust design,typical rear exhaustion effectively prevents complications such as air embolism and soft tissue infections.

Technical parameters

Product model TUP
Product code J45(LED)
Order number 100073
Bur size 25mm(长度),φ1.6mm
Working air pressure 0.28MPa - 0.3MPa
Rotating speed 320000-340000rpm/min
Noise ≤60dB
Atomizing air pressure 0.4MPa
Working water pressure 0.2MPa
Water flow 90ml/min-110ml/min
Radial run-out ≤0.03mm
Appearance Titanium coating
Spray system 4-hole water spray
Bur locking system push button
Cartridge type exposed cartridge
Bearings German bearings
Disinfection method Autoclaving In temperature as high as 135 degree
Others rear exhaust, zero-retraction, LED light source
